5700 SERIES
FIXED PICTURE
Maintenance free vinyl will not blister, corrode, flake, peel or rot and does not require painting.

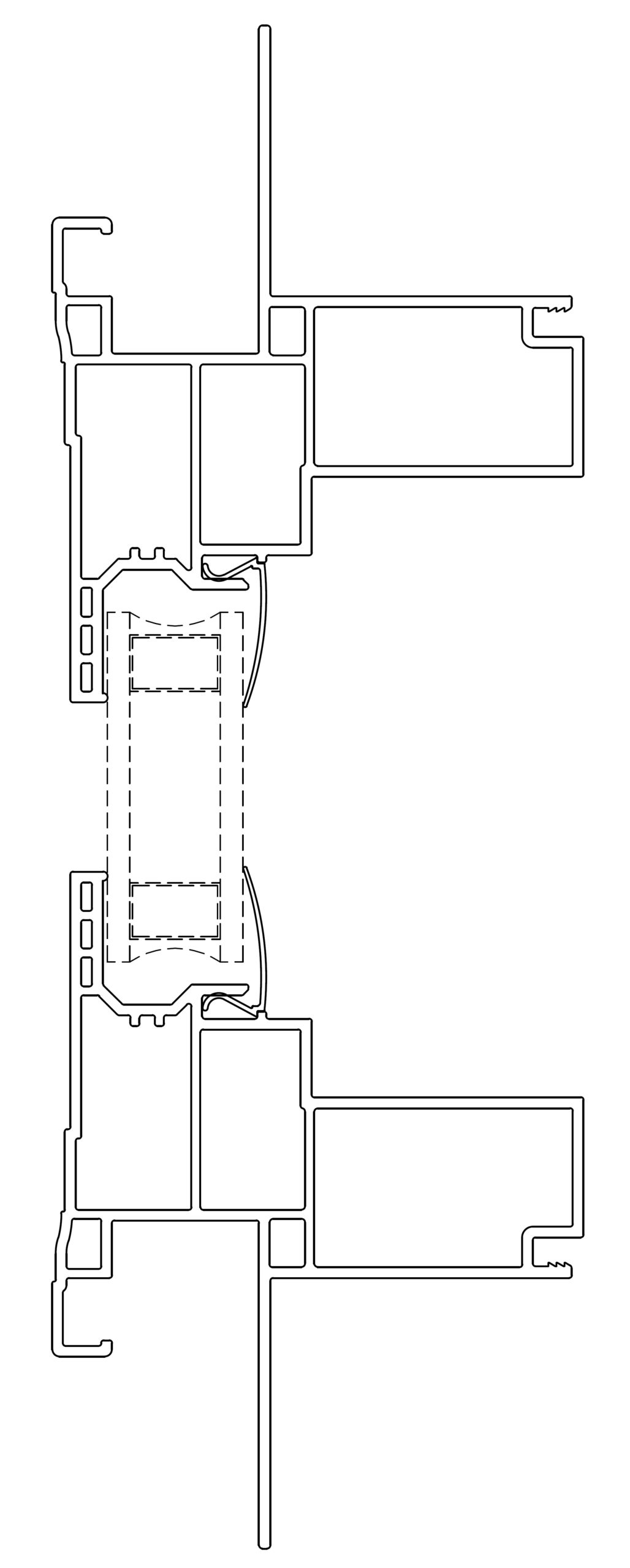

CLICK TO ENLARGE
MORE ABOUT THE
5700 SERIES FIXED PICTURE
High quality vinyl Airtite Windows are a beautiful and lasting way to add value to any home. We’ve been manufacturing custom Airtite windows since 1975. Our specialty is custom fitting windows of any size to fit any size opening you may have for remodeling or new construction. Airtite Windows and Door Products are built with the highest quality in Abilene Texas. Quality custom-built windows help create the atmosphere in your home. Choose from all types of glass packages that suit the climate of Texas. Our Airtite windows qualify for the American Recovery and Reinvestment Act (ARRA) requirements.
AVAILABLE COLORS
WHITE
TAN
CLAY
BLACK OVER WHITE
GLASS PERFORMANCE
| Product | Visible Light Transmittance % | Solar Heat Gain Coefficient | Winter U-Factor (Air/Argon) | UV | Fading Transmission |
|---|---|---|---|---|---|
| Clear | 82% | 0.78 | 0.48/– | 0.58 | 0.75 |
| LoE-340 | 39% | 0.18 | 0.29/0.25 | 0.20 | 0.42 |
| LoE-270 | 70% | 0.37 | 0.30/0.25 | 0.14 | 0.53 |
| LoE-366 | 65% | 0.27 | 0.29/0.24 | 0.06 | 0.43 |
| LoE-366/I89 | 63% | 0.27 | 0.23/0.20 | 0.05 | 0.41 |
- U-Factor .27 / SHGC .23
- Maintenance free vinyl will not blister, corrode, flake, peel or rot and does not require painting.
- Fusion welded frame and sash construction provide superior strength and durability.
- Our multi-chambered profile design provides greater thermal efficiencies and structural performance while acting to reduce sound transmission.
- 3/4″ insulated glass units manufactured with “edge tech” technology provide optimal thermal performance.
- Colonial grids option are available in a number of configurations and are color matched to the vinyl.
- Pre-punched integral vinyl nail fins allows for fast and easy installation.
MORE ABOUT THE 5700 SERIES FIXED PICTURE

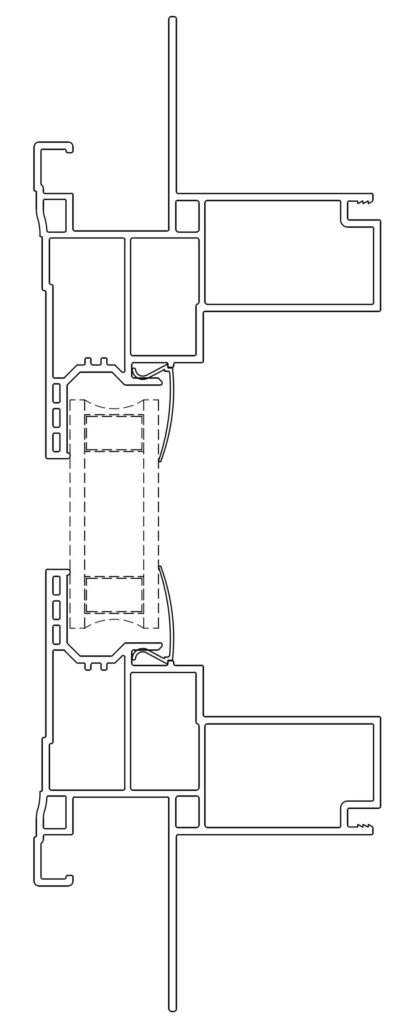

CLICK TO ENLARGE
High quality vinyl Airtite Windows are a beautiful and lasting way to add value to any home. We’ve been manufacturing custom Airtite windows since 1975. Our specialty is custom fitting windows of any size to fit any size opening you may have for remodeling or new construction. Airtite Windows and Door Products are built with the highest quality in Abilene Texas. Quality custom-built windows help create the atmosphere in your home. Choose from all types of glass packages that suit the climate of Texas. Our Airtite windows qualify for the American Recovery and Reinvestment Act (ARRA) requirements.
AVAILABLE COLORS
WHITE
TAN
CLAY
BLACK OVER WHITE
- U-Factor .27 / SHGC .23
- Maintenance free vinyl will not blister, corrode, flake, peel or rot and does not require painting.
- Fusion welded frame and sash construction provide superior strength and durability.
- Our multi-chambered profile design provides greater thermal efficiencies and structural performance while acting to reduce sound transmission.
- 3/4″ insulated glass units manufactured with “edge tech” technology provide optimal thermal performance.
- Colonial grids option are available in a number of configurations and are color matched to the vinyl.
- Pre-punched integral vinyl nail fins allows for fast and easy installation.
GLASS PERFORMANCE
| Product | Visible Light Transmittance % | Solar Heat Gain Coefficient | Winter U-Factor (Air/Argon) | UV | Fading Transmission |
|---|---|---|---|---|---|
| Clear | 82% | 0.78 | 0.48/– | 0.58 | 0.75 |
| LoE-340 | 39% | 0.18 | 0.29/0.25 | 0.20 | 0.42 |
| LoE-270 | 70% | 0.37 | 0.30/0.25 | 0.14 | 0.53 |
| LoE-366 | 65% | 0.27 | 0.29/0.24 | 0.06 | 0.43 |
| LoE-366/I89 | 63% | 0.27 | 0.23/0.20 | 0.05 | 0.41 |
